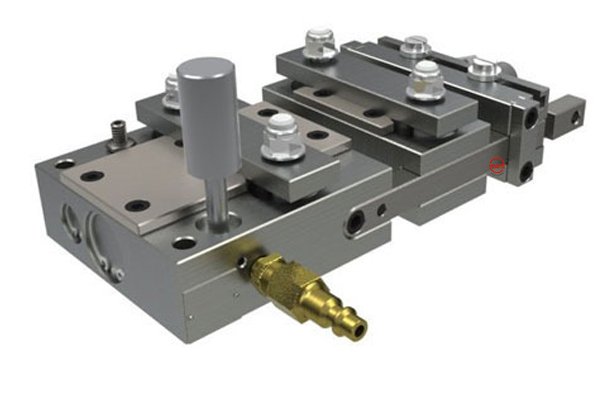

We are manufacturer a wide range of pneumatic feeders which are produced as per client''s specifications. We are engaged in offering a comprehensive range of Industrial Pneumatic Feeders that is available in normal series along with a special valve, which increases the feeding speed. The series is specifically designed for the high production of small parts; especially at the time when, long feed strokes are needed. Apart from the standard options, these can also be customized to suit the varied requirements of our clients.
We are the leading the manufacturer and supplier of all type of Heavy Duty Pneumatic Feeder.
| Pneumatic Air Feeder - Specification | ||||
|---|---|---|---|---|
| Type | Strip Width | Stroke | Stripe Thickness | Max |
| Max mm | Max mm | Max mm | Stroke /Min | |
| MAS(60x60) M.S.P | 50 | 50 | 2.3 | 245 |
| MAS(60x105) M.S.P | 50 | 105 | 2.0 | 175 |
| MAS(60x160) M.S.P | 50 | 160 | 2.0 | 145 |
| MAS(60x205) M.S.P | 50 | 205 | 1.8 | 120 |
| MAS(60x260) M.S.P | 50 | 260 | 1.8 | 100 |
| MAS(110x60) M.S.P | 110 | 260 | 2.5 | 245 |
| MAS( 110x105) M.S.P | 110 | 60 | 2.0 | 175 |
| MAS( 110x160) M.S.P | 110 | 10 | 1.9 | 45 |
| MAS( 110x210) M.S.P | 110 | 210 | 1.9 | 115 |
| MAS( 110x260) M.S.P | 110 | 260 | 1.8 | 95 |
| MAS( 110x210) M.S.P | 160 | 210 | 1.2 | 105 |
| MAS( 110x260) M.S.P | 160 | 260 | 1.3 | 85 |
| MAS( 160x60) M.S.P | 160 | 60 | 1.8 | 155 |
| MAS( 160x110) M.S.P | 160 | 110 | 15 | 185 |
| MAS( 160x160) M.S.P | 160 | 160 | 12 | 155 |
| MAS( 215x210) M.S.P | 215 | 210 | 1.1 | 145 |
| MAS( 215x260) M.S.P | 215 | 260 | 1.1 | 105 |
| MAS( 215x60) M.S.P | 215 | 60 | 1.1 | 135 |
| MAS( 315x110) M.S.P | 315 | 110 | 0.95 | 165 |
| MAS( 315x160) M.S.P | 315 | 160 | 0.8 | 135 |
| MAS( 315x210) M.S.P | 315 | 210 | 0.6 | 115 |
| MAS( 315x260) M.S.P | 315 | 260 | 0.6 | 95 |
